Specification
| Specification | Range | Accuracy |
| HT113 | HT113A | HT113B | HT113C |
| DC Voltage | 200mV/2V/20V/200V/600V | ±(0.5%+3) | ±(0.5%+3) | | |
| 400mV/4V/40V/400V/600V | | | ±(0.5%+3) | |
| 600mV/6V/60V/600V | | | | ±(0.5%+3) |
| AC Voltage | 200V/600V | ±(1.0%+3) | ±(1.0%+3) | | |
| 400mV/4V/40V/400V/600V | | | ±(1.0%+3) | |
| 600mV/6V/60V/600V | | | | ±(1.0%+3) |
| DC Current | 20mA/200mA | ±(1.2%+3) | | | |
| 200mA | | ±(1.2%+3) | | |
| 400uA/4000uA/40mA/400mA | | | ±(1.2%+3) | |
| 600uA/6000uA/60mA/600mA | | | | ±(1.2%+3) |
| 10A | ±(2.0%+3) | ±(2.0%+3) | ±(2.0%+3) | ±(2.0%+3) |
| AC Current | 200mA | | ±(1.5%+3) | | |
| 400uA/4000uA/40mA/400mA | | | ±(1.5%+3) | |
| 600uA/6000uA/60mA/600mA | | | | ±(1.5%+3) |
| 10A | | ±(2.0%+3) | ±(2.0%+3) | ±(2.0%+3) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(1.0%+3) | ±(1.0%+3) | | |
| 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | | | ±(1.0%+3) | |
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | | | | ±(1.0%+3) |
| Cpacitance | 60nF/600nF/6uF/60uF/6mF/60mF | | | | ±(4.0%+5) |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | | | | ±(1.0%+3) |
| Duty | 1%~99% | | | | ±(3.0%+3) |
| Display | 2000 counts | 2000counts | 4000counts | 6000counts |
| Auto/Manual range | manual | manual | Auto | Auto |
| Live test | | | | √ |
| NCV | | √(LED&Beep) | √(LED&Beep) | √(LED&Beep) |
| Diode test | √ | √ | √ | √ |
| Continuity | √ | √(LED&Beep) | √(LED&Beep) | √(LED&Beep) |
| Max data hold | | | √ | √ |
| Data hold | √ | √ | √ | √ |
| True RMS | | | √ | √ |
| bandwiidth | 40~400Hz | 40~400Hz | 40~400Hz | 1KHz |
| battery Test | √ | √ | √ | |
| Low battery indication | √ | √ | √ | √ |
| Auto power off | √ | √ | √ | √ |
| back light | √ | √ | √ | √ |
| work light | | √ | √ | √ |
| Power | 2X1.5V AAA battery |
| Weight | 250g |
| Size | 151X75X48mm |

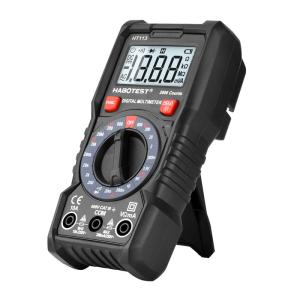

This Digital Multimeter has AC DC current & voltage test,Diode Test, Continuity, Data hold, functions etc. high accuracy and easy operation face. it's widely used in DIY, Professional Engineering and PCB circuit checking etc.
Packaging & Shipping
- Port: Shenzhen
- Lead Time :
-
| Quantity(Pieces) | 1 - 40 | 41 - 1000 | >1000 |
| Est. Time(days) | 3 | 25 | To be negotiated |
Company Information
Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.
We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other detecting insturments for the worldwide customers to meet the growing global market demend, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.
Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.
Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
